CORONAVIRUS FACE SHIELD PROTECTION
Do-it-Yourself
Download PDF - FREE
It is already 18 MILLION infections, wearing a mask is very important, but not enough to combat the unseen deadly virus, I designed this protection shielding head cap for the total face isolation- eyes, nose, mouth and ears. Simple and everybody can do it. |
![Face Shield Protection Design - Covid-19](images/coronavirus_face_shield_protection-thumbs/coronavirus_face_shield_protection_design.jpg)
Face Shield Protection Design - Covid-19 |

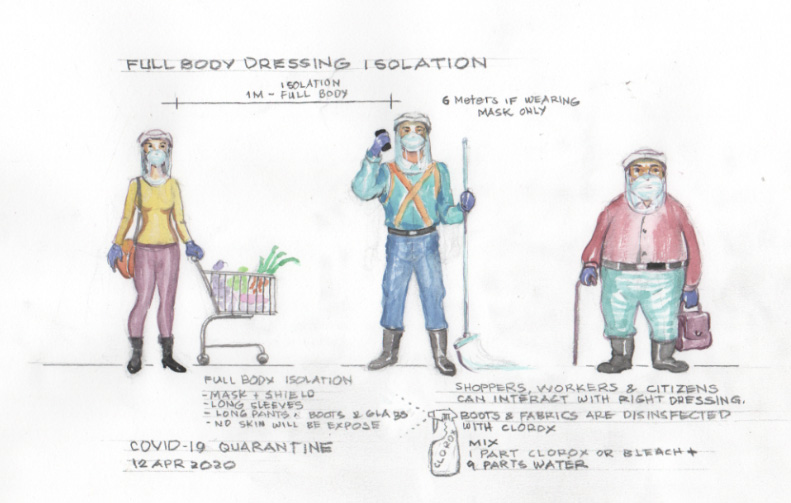

![Full Body Dressing Protection Design - Covid-19](images/coronavirus_face_shield_protection-thumbs/dressing_covid.jpg)
Full Body Dressing Protection Design - Covid-19 |
![Head cap design covid-19.](images/coronavirus_face_shield_protection-thumbs/head_cover_cup_design.jpg)
Head cap design covid-19. |

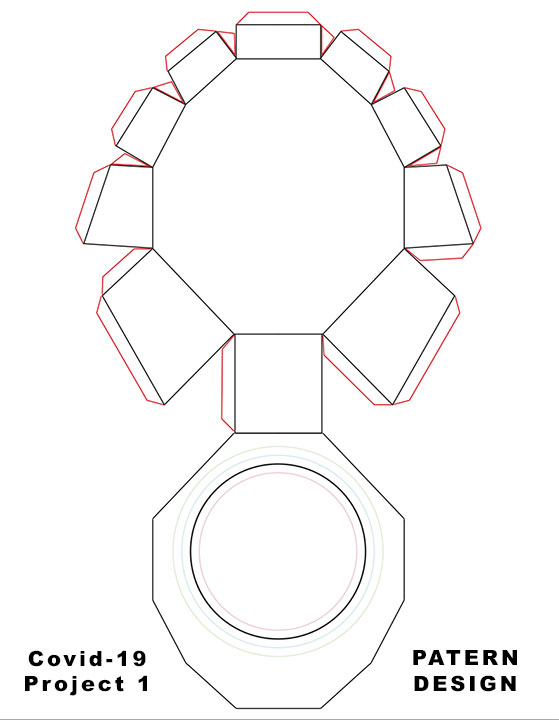

Download the PDF file, the measurement is 22"x28" ( regular size cardboard or board cartolina, any design materials, plastic, synthetics or fabric). Trace all lines and chose your head Diameter: choose the desired hole of head holes, green 8.5", blue 7.75", black 7", pink 6.5". |

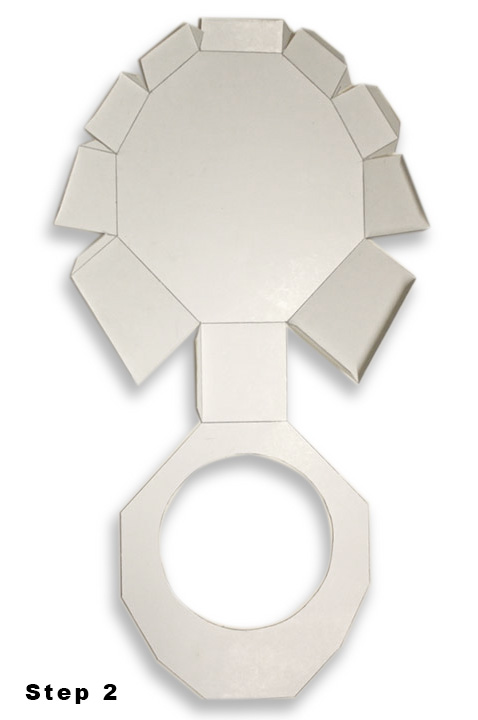

![Head cap design folding and creasing.](images/coronavirus_face_shield_protection-thumbs/pattern-folding_step-2.jpg)
Head cap design folding and creasing. |
Step 2 - Illustrate the folding system, creasing the flaps and folds with coins or unsharp edges, flip with sraight ruler. |

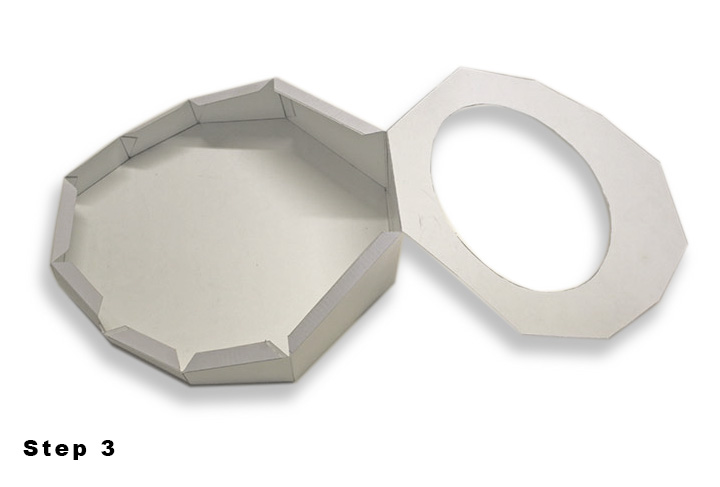

![Head cap design assenbling.](images/coronavirus_face_shield_protection-thumbs/illustration_3_side_folded_joint.jpg)
Head cap design assenbling. |
Step 3 Illustrate the perfect joinings and attached with double face adhesive tapes ( I used carpet double adhesive tape - it stick strong ). |

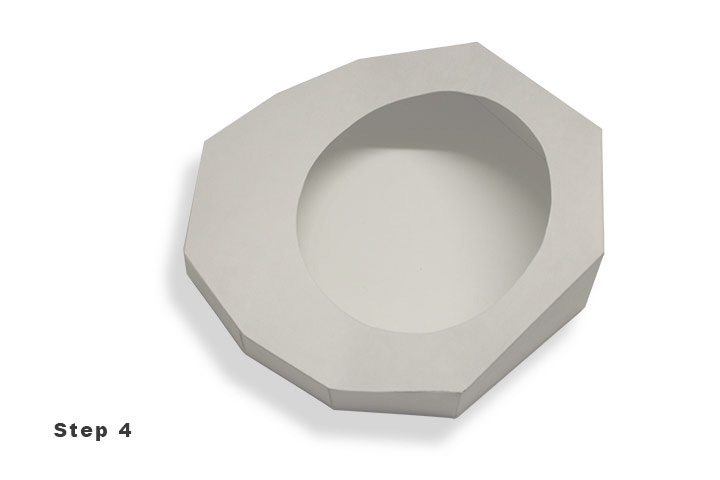

![Head cap design assembled and finishing.](images/coronavirus_face_shield_protection-thumbs/illustration_4_cap.jpg)
Head cap design assembled and finishing. |
Step 4 - Close all edges and complete with trimmings some overlap edges. |

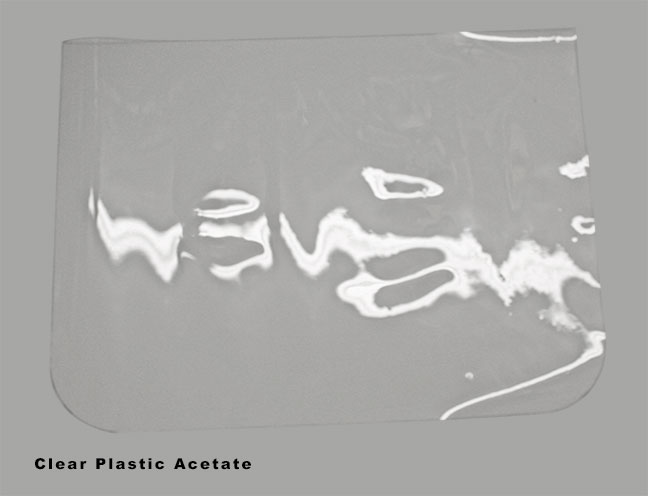

![Clear plastic acetate - 15x20 inches.](images/coronavirus_face_shield_protection-thumbs/clear_plastic_acetate.jpg)
Clear plastic acetate - 15x20 inches. |
Prepare and cut a clear plastic acetate or any plastic measuring 15" x 20", make the corners rounded. |

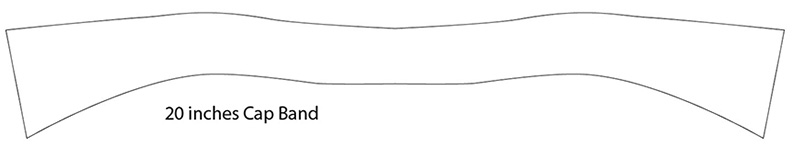

![Cap band 20 inches.](images/coronavirus_face_shield_protection-thumbs/cap_band.jpg)
Cap band 20 inches. |
Prepare also the cap band measuring 20" from temple to temple. |
![Head cap design assembled and finishing with clear plastic acetate.](images/coronavirus_face_shield_protection-thumbs/coronavirus_protection_shielding_head_cap.jpg)
Head cap design assembled and finishing with clear plastic acetate. |
Step 5 - Attach the accetate first and the head band. Sanitized before and after usage. Disposable. |
